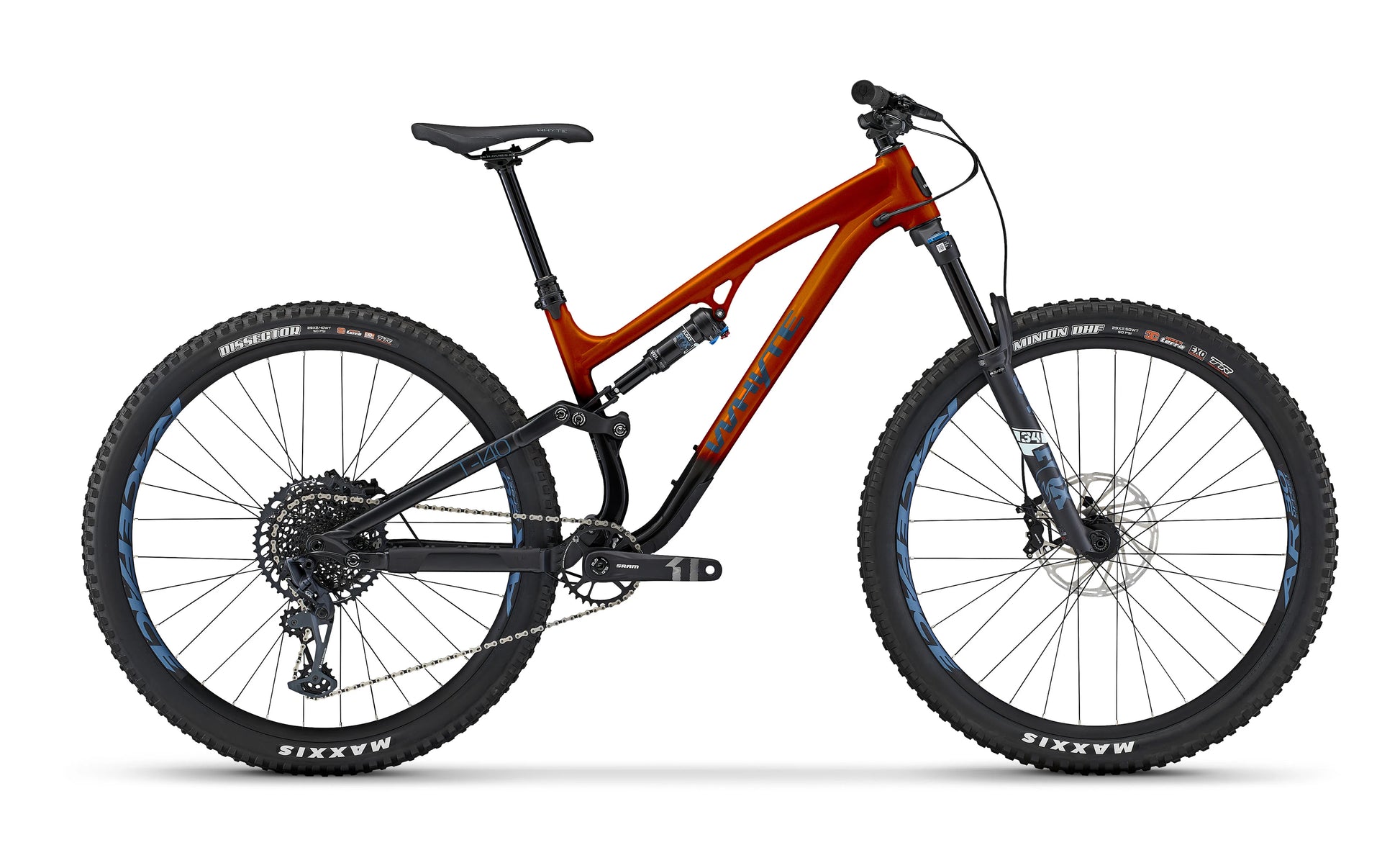

WHYTE T-140 RS FULL SUSPENSION MOUNTAIN BIKE
WHYTE T-140 RS FULL SUSPENSION MOUNTAIN BIKE
Couldn't load pickup availability
COLLECTION IN STORE ONLY
Explore everywhere
Our mid-range T-140 RS is our fastest and most versatile full-suspension trail bike that's perfect for finding every sort of fun on any terrain. Add in a specially curated parts selection for the best blend of performance and value so your money goes as far as you will, our extended lifetime frame and pivot bearing warranties, and weather-sealed features, and you've got everyday excellence, everywhere.
Highlights
– 140mm front and 135mm of rear suspension travel.
– 6061 aluminium SCR framet with ISCG 2 guide mounts + geometry adjustment + Boost dropouts.
– Fox Float 34 Performance Elite 29in fork + custom-tuned Fox DPS – Performance Elite Evol LV shock.
– SRAM GX Eagle 12 speed mechanical transmission (32T chainring x 11-52T cassette).
– 29in trail-smoothing wheels front and rear.
– Can be converted to MX wheels (29er front, 27.5in rear) for a more gravity-focused ride.
Specifications
| COLOUR | Tiger orange | CASSETTE | SRAM XG-1275 Eagle, 10-52, 12 Speed |
|---|---|---|---|
| FRAME | 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts | CHAIN | SRAM GX Eagle, 12 Speed |
| FORK | Fox Float 34 Performance Elite 29", 140mm Travel, 44mm Offset, Grip 2 Damper, Tapered Steerer, 110mm x 15mm Boost E-Thru Axle | CRANKSET | SRAM GX, Direct Mount 32T, DUB, 165mm |
| REAR SHOCK | Fox DPS Performance Elite, Evol LV, Adjustable Rebound and 3 Position Compression, 210 x 50mm, custom tuned for Whyte | BOTTOM BRACKET | SRAM DUB, BSA, 73mm |
| HEADSET | FSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings | SEATPOST | Whyte Drop.It II, 30.9mm, Adjust, M 120-150mm, L 140-170mm, XL 170-200mm Travel, Paddle Remote Lever |
| REAR HUB | Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl, XD Driver, 32 Hole | SADDLE | Whyte Custom, Dual Density, Triple Panel Design |
| FRONT HUB | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole | HANDLEBAR | Whyte 6061 Alloy, 31.8mm, 780mm Wide, M 20mm, L/XL 30mm Rise |
| SPOKES | DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples | STEM | Whyte Gravity Stem, 35mm Extension |
| RIMS | Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole | GRIPS | Whyte Lock-on Enduro Grip |
| TYRE | Maxxis Minion DHF TR 29" x 2.5" WT 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 29" x 2.4" WT 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra, Rear | BRAKES FRONT | SRAM Guide G2 R, 4 Piston, 180mm Disc |
| SHIFT LEVERS | SRAM GX Eagle Trigger MMX, 12 Speed | BRAKES REAR | SRAM Guide G2 R, 4 Piston, 180mm Disc, Internal Routing |
| FRONT MECH | N/A | BRAKE LEVERS | SRAM Guide G2 R, Matchmaker |
| REAR MECH | SRAM GX Eagle 12 Speed | PEDALS | None |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 430 | 455 | 483 | 510 |
| B - STACK (mm) | 621.4 | 633.2 | 646.8 | 658.5 |
| C - HEAD ANGLE (° degrees) | 65.3 (64.7) | 65.3 (64.7) | 65.3 (64.7) | 65.3 (64.7) |
| D - SEAT ANGLE (° degrees) | 76.4 | 76.2 | 76 | 75.8 |
| E - BB HEIGHT (mm) | 338 (330) | 338 (330) | 338 (330) | 338 (330) |
| F - WHEELBASE (mm) | 1184.7 | 1215.1 | 1249.5 | 1282 |
| G - REAR CENTRE (mm) | 435 | 435 | 435 | 435 |
| H - STANDOVER HEIGHT (mm) | 735 | 735 | 735 | 735 |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 107 | 120 | 135 | 148 |
