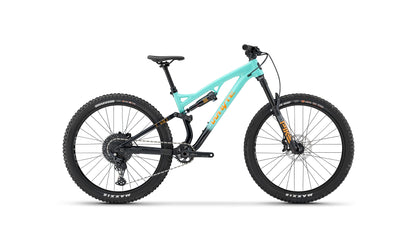

WHYTE T-140 27 JUNIOR FULL SUSPENSION MOUNTAIN BIKE
WHYTE T-140 27 JUNIOR FULL SUSPENSION MOUNTAIN BIKE
Couldn't load pickup availability
COLLECTION IN STORE ONLY
Full-suss, full fun
We’ve applied all the innovation and attention to detail that make our adult T-140 bikes exceptional trail performers and crafted them into this junior, trail-blasting full-suspension mountain bike. From singletrack to bike parks, the versatile T-140 27 is ready to ride anywhere.
Highlights
– 140mm front and 135mm of rear suspension travel.
– 6061 aluminium SCR framset with ISCG 2 guide mounts + geometry adjustment + Boost dropouts.
– RockShox Pike 27.5in fork + RockShox Deluxe Select+ RT shock.
– Shimano Deore 1x11 transmission (32T chainring x 11-51T cassette).
– KS 900I dropper seatpost + bar-mounted remote with size-specific drop.
– 27.5in WTB ST i30 rims + Maxxis tyres front and rear.
– TRP Slate Evo four-piston hydraulic disc brakes (180mm rotors)
Specifications
| COLOUR | Gloss green with coral orange | CASSETTE | SunRace CSMS8, 11-51, 11 Speed |
|---|---|---|---|
| FRAME | 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, 148mm Boost Dropouts | CHAIN | KMC X11 Black/Silver, 11 Speed |
| FORK | RockShox Pike, 27.5", 140mm Travel, 37mm Offset, Debonair+, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110 x 15mm Boost, Maxle Ultimate | CRANKSET | Whyte, Forged 2pcs Cranks, Direct Mount alloy 32T Narrow Wide Boost Chainring, 170mm, Boost, 11 Speed |
| REAR SHOCK | RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression | BOTTOM BRACKET | BSA, Cartridge Bearings, 73mm |
| HEADSET | FSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings | SEATPOST | KS 900I, 30.9mm, XS 100mm, S 125mm, M/L/XL 150mm Travel, Shimano Post Lever |
| REAR HUB | Alloy, Double Sealed Cartridge Bearings, Centre Lock 12mm x 148mm Boost Thru Axle, 32 Hole | SADDLE | Whyte Custom, Dual Density, Triple Panel Design |
| FRONT HUB | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole | HANDLEBAR | Whyte 6061 Alloy, 31.8mm, XS/S 15mm Rise, 760mm Wide, M/L/XL, 30mm Rise 780mm Wide |
| SPOKES | DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples | STEM | Whyte Gravity Stem, 35mm Extension |
| RIMS | WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole | GRIPS | Whyte Lock-on Enduro Grip |
| TYRE | Maxxis Minion DHF TR 27.5" x 2.6" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 27.5" x 2.6" 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra, Rear | BRAKES FRONT | TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm 2.3mm Disc |
| SHIFT LEVERS | Shimano Deore M5100, I-Spec EV 11 Speed, Black | BRAKES REAR | TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm 2.3mm Disc, Internal Routing |
| FRONT MECH | N/A | BRAKE LEVERS | TRP Slate Evo |
| REAR MECH | Shimano Deore RD-M5100-SGS, Shadow Plus, 11 Speed | PEDALS | None |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Extra Small | Small |
| A - REACH (mm) | 408 | 432 |
| B - STACK (mm) | 593 | 604 |
| C - HEAD ANGLE (° degrees) | 65.9 (65.3) | 65.9 (65.3) |
| D - SEAT ANGLE (° degrees) | 74.9 | 74.7 |
| E - BB HEIGHT (mm) | 330.1 (322.3) | 330.1 (322.3) |
| F - WHEELBASE (mm) | 1139 | 1168 |
| G - REAR CENTRE (mm) | 435 | 435 |
| H - STANDOVER HEIGHT (mm) | 788 | 796 |
| I - SEAT TUBE LENGTH (mm) | 368.3 | 406.4 |
| J - HEAD TUBE LENGTH (mm) | 100 | 112 |
