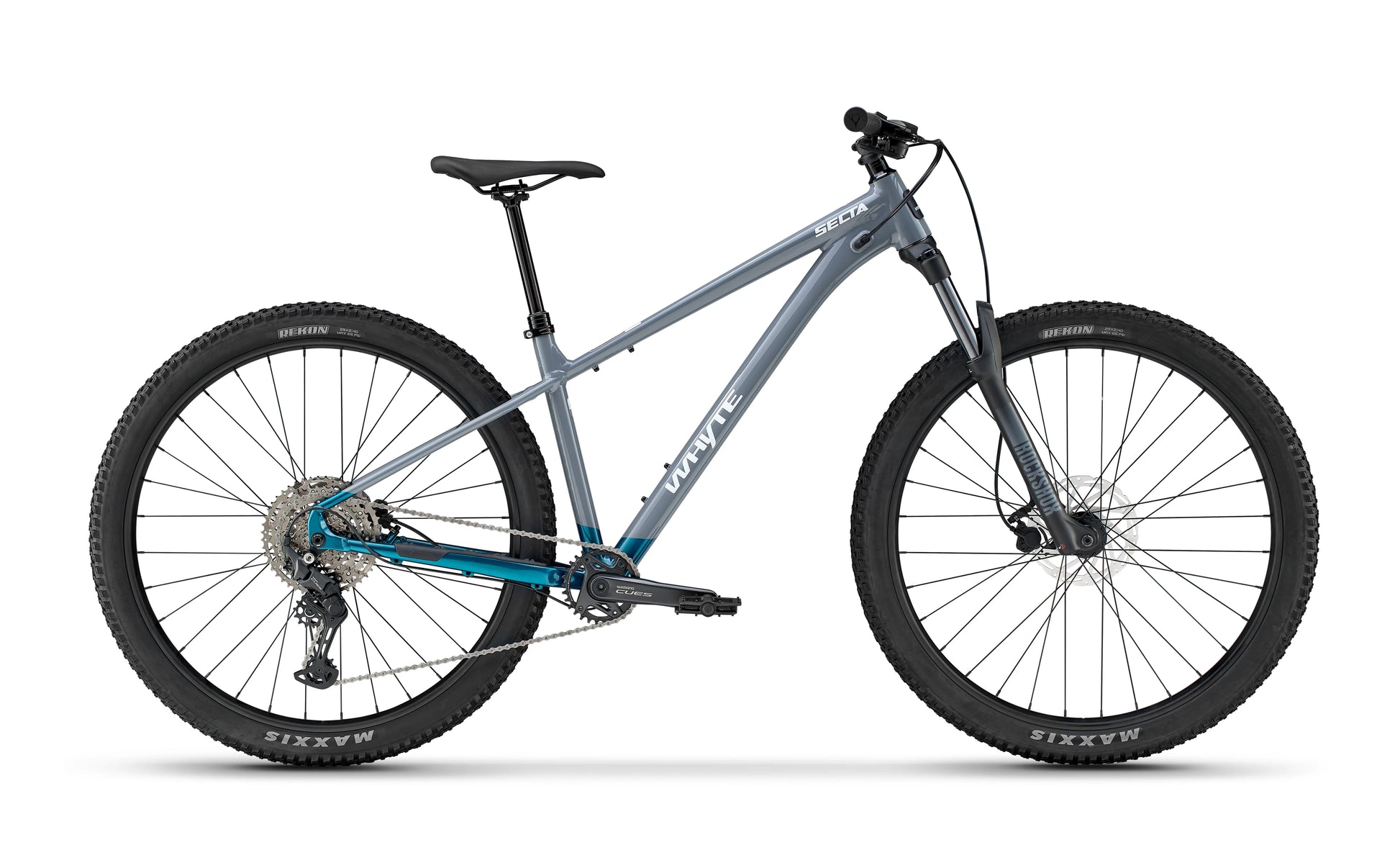

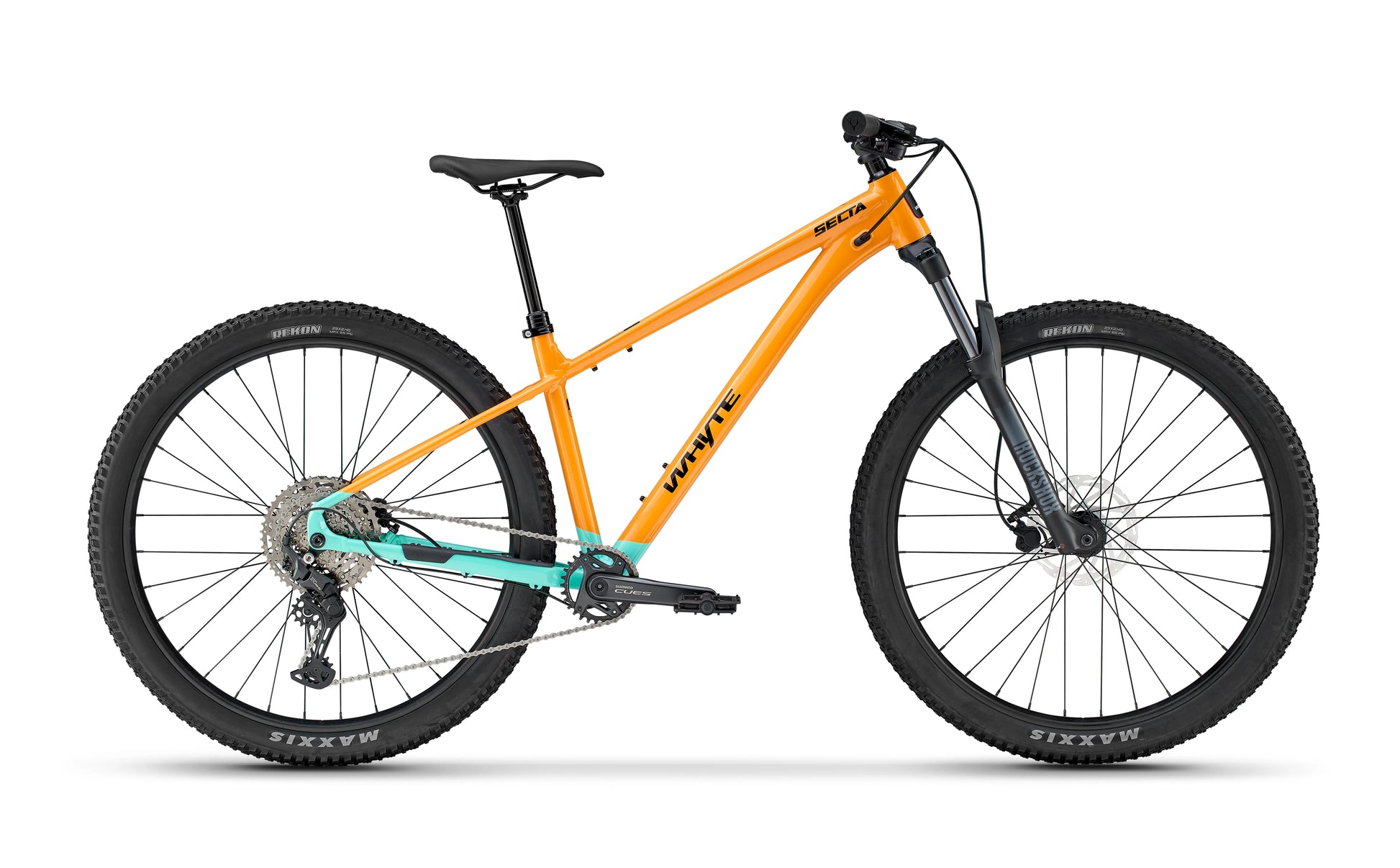

WHYTE SECTA S MOUNTAIN BIKE
WHYTE SECTA S MOUNTAIN BIKE
Couldn't load pickup availability
COLLECTION IN STORE ONLY
High performance, low price
However you ride, Secta S will help unlock your riding potential in a fun, capable and confidence-inspiring package. Blending progressive geometry, specially curated components and full weatherproofing for the best possible performance and value combination, Secta S is a proper real-world, modern mountain bike that’s trail-ready right from the shop floor.
Highlights
– Fully featured 6061 T6 precision formed aluminium frame.
– 130mm RockShox Rekon Silver RL suspension fork.
– Capable, smooth-rolling 29er wheels + Maxxis tyres.
– Shimano Cues 1x10 transmission (30T chainring x 11-48 cassette).
– Tektro two-piston hydraulic disc brakes (180mm rotors front + rear)
– TransX full-insertion dropper post (with frame size-specific drop).
Specifications
| COLOUR | Aqua Storm | CASSETTE | Shimano LG400, 11-48T, 10 speed |
|---|---|---|---|
| FRAME | 6061-T6 heat treated aluminium, multi-shaped and formed main-frame tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube for maximum dropper seat post insertion; external headset/grommet sealed internal frame cable and brake hose routing; 73mm BSA / BB-X63 dropper seatpost compatible bottom bracket (BB) shell; Post Mount 180mm disc dropout and SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. | CHAIN | Shimano LG500, 118 links |
| FORK | RockShox Rekon Silver RL 29in, 130mm travel, 44mm offset, DebonAir, Fast Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost, Maxle Stealth | CRANKSET | Shimano CUES U6000, 30T chainring, 170mm, 10 speed, 52mm chainline |
| REAR SHOCK | N/A | BOTTOM BRACKET | Shimano BB-MT501, Hollowtech II, 73mm |
| HEADSET | FSA No. 57B Orbit ZS, 1 1/2in lower and 1 1/8in upper caged bearings | SEATPOST | TransX size specific dropper post, 30.9mm (size S 150mm travel; sizes M-XL 170mm travel) |
| REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub | SADDLE | Whyte Custom |
| FRONT HUB | Alloy, 15mm x 110mm Boost spacing, 32 hole | HANDLEBAR | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| SPOKES | 2.0mm, black stainless, brass nipples | STEM | Whyte alloy, 35mm extension, 31.8mm bar bore |
| RIMS | Pinned joint, 30mm internal width, tubeless compatible, 32 hole | GRIPS | Whyte Trail lock-on |
| TYRE | Maxxis Rekon 29in x 2.4in front and rear | BRAKES FRONT | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| SHIFT LEVERS | Shimano CUES U6000, 10 speed, Band On clamp | BRAKES REAR | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| FRONT MECH | N/A | BRAKE LEVERS | Tektro M285 |
| REAR MECH | Shimano CUES U6000, 10 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 420 | 445 | 470 | 495 |
| B - STACK (mm) | 649.4 | 644 | 662 | 671 |
| C - HEAD ANGLE (° degrees) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - SEAT ANGLE (° degrees) | 75.5 | 76 | 76.5 | 77 |
| E - BB HEIGHT (mm) | 298 | 298 | 298 | 298 |
| F - WHEELBASE (mm) | 1187.4 | 1215.1 | 1246.4 | 1275.9 |
| G - REAR CENTRE (mm) | 443.4 | 443.4 | 443.4 | 443.4 |
| H - STANDOVER HEIGHT (mm) | TBC | TBC | TBC | TBC |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 105 | 114 | 125 | 135 |
