WHYTE SECTA RS MOUNTAIN BIKE
WHYTE SECTA RS MOUNTAIN BIKE
Couldn't load pickup availability
COLLECTION IN STORE ONLY
Fun, fast and capable
Secta RS builds on our award-winning hardtail heritage for the demands – and terrain – of today’s trail riders. With a fully featured frame, confidence-inspiring geometry, enabling componentry, and full weatherproofing, Secta RS delivers exceptional performance in a ‘quality for money’ package that’s as easy to ride as it is to love.
Highlights
– Fully featured 6061 T6 precision formed aluminium frame.
– 130mm RockShox Psylo Gold RC suspension fork.
– Capable, smooth-rolling 29er wheels + Maxxis tubeless ready tyres.
– Shimano Deore 1x12 transmission (32T chainring x 10-51 cassette).
– Shimano four-piston hydraulic disc brakes (180mm rotors front + rear)
– TransX RAD full-insertion dropper post (with frame size-specific drop).
Specifications

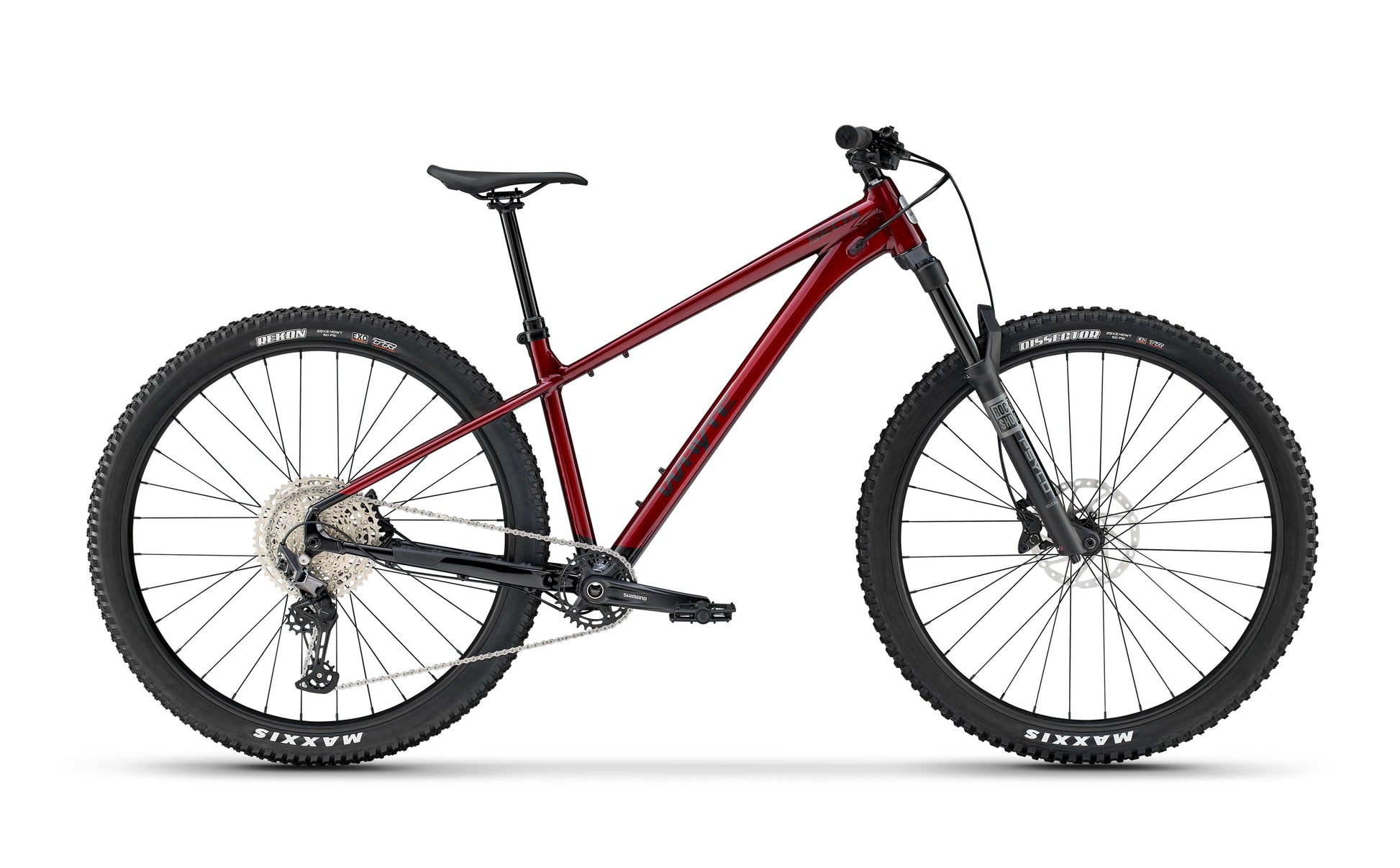

| COLOUR | Gloss ruby red with black | CASSETTE | Shimano Deore M6100-12, 10-51T, 12 speed |
|---|---|---|---|
| FRAME | 6061-T6 heat treated aluminium, multi-shaped and formed main-frame tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube for maximum dropper seat post insertion; external headset/grommet sealed internal frame cable and brake hose routing; 73mm BSA / BB-X63 dropper seatpost compatible bottom bracket (BB) shell; Post Mount 180mm disc dropout and SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. | CHAIN | Shimano M6100 with Quick-Link, 120 links |
| FORK | RockShox Psylo Gold RC 29in, 130mm travel, 44mm offset, DebonAir, Fast Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost, Maxle Stealth | CRANKSET | Shimano MT510, 32T, 170mm, 52mm chainline |
| REAR SHOCK | N/A | BOTTOM BRACKET | Shimano Hollowtech II |
| HEADSET | FSA No. 57B Orbit ZS, 1 1/2in Lower and 1 1/8in upper caged bearings | SEATPOST | TransX RAD+ adjustable dropper post, 30.9mm with size-specific drop (size S 150mm travel; size M 170mm; sizes L-XL 200mm travel) |
| REAR HUB | Shimano FH-TC600-MS-B, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, Microspline freehub | SADDLE | Whyte Custom |
| FRONT HUB | Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 32 hole | HANDLEBAR | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 780mm wide |
| SPOKES | 2.0mm, black stainless, brass nipples | STEM | Whyte alloy, 35mm extension, 31.8mm bar bore |
| RIMS | Pinned joint, 30mm internal width, tubeless compatible, 32 hole | GRIPS | Whyte Enduro lock-on |
| TYRE | Maxxis Dissector EXO Tubeless 29in x 2.4in, front; Maxxis Rekon EXO Tubeless 29in x 2.4in, rear | BRAKES FRONT | Shimano MT420 four piston hydraulic disc brakes with 180mm rotors |
| SHIFT LEVERS | Shimano Deore M6100, 12 speed, Band On clamp | BRAKES REAR | Shimano MT420 four piston hydraulic disc brakes with 180mm rotors |
| FRONT MECH | N/A | BRAKE LEVERS | Shimano MT401 |
| REAR MECH | Shimano Deore M6100, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 420 | 445 | 470 | 495 |
| B - STACK (mm) | 649.4 | 644 | 662 | 671 |
| C - HEAD ANGLE (° degrees) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - SEAT ANGLE (° degrees) | 75.5 | 76 | 76.5 | 77 |
| E - BB HEIGHT (mm) | 298 | 298 | 298 | 298 |
| F - WHEELBASE (mm) | 1187.4 | 1215.1 | 1246.4 | 1275.9 |
| G - REAR CENTRE (mm) | 443.4 | 443.4 | 443.4 | 443.4 |
| H - STANDOVER HEIGHT (mm) | TBC | TBC | TBC | TBC |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 105 | 114 | 125 | 135 |
