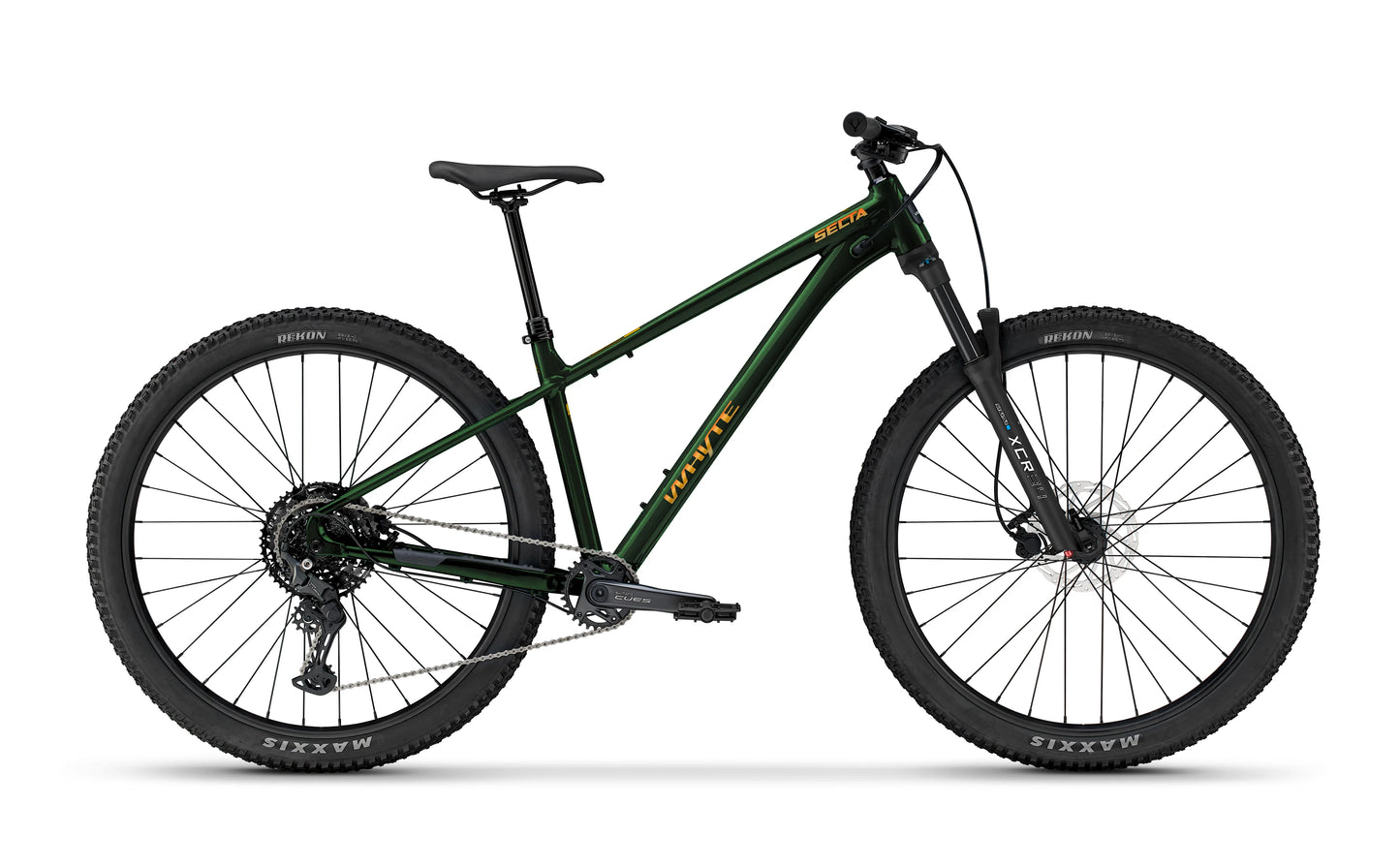

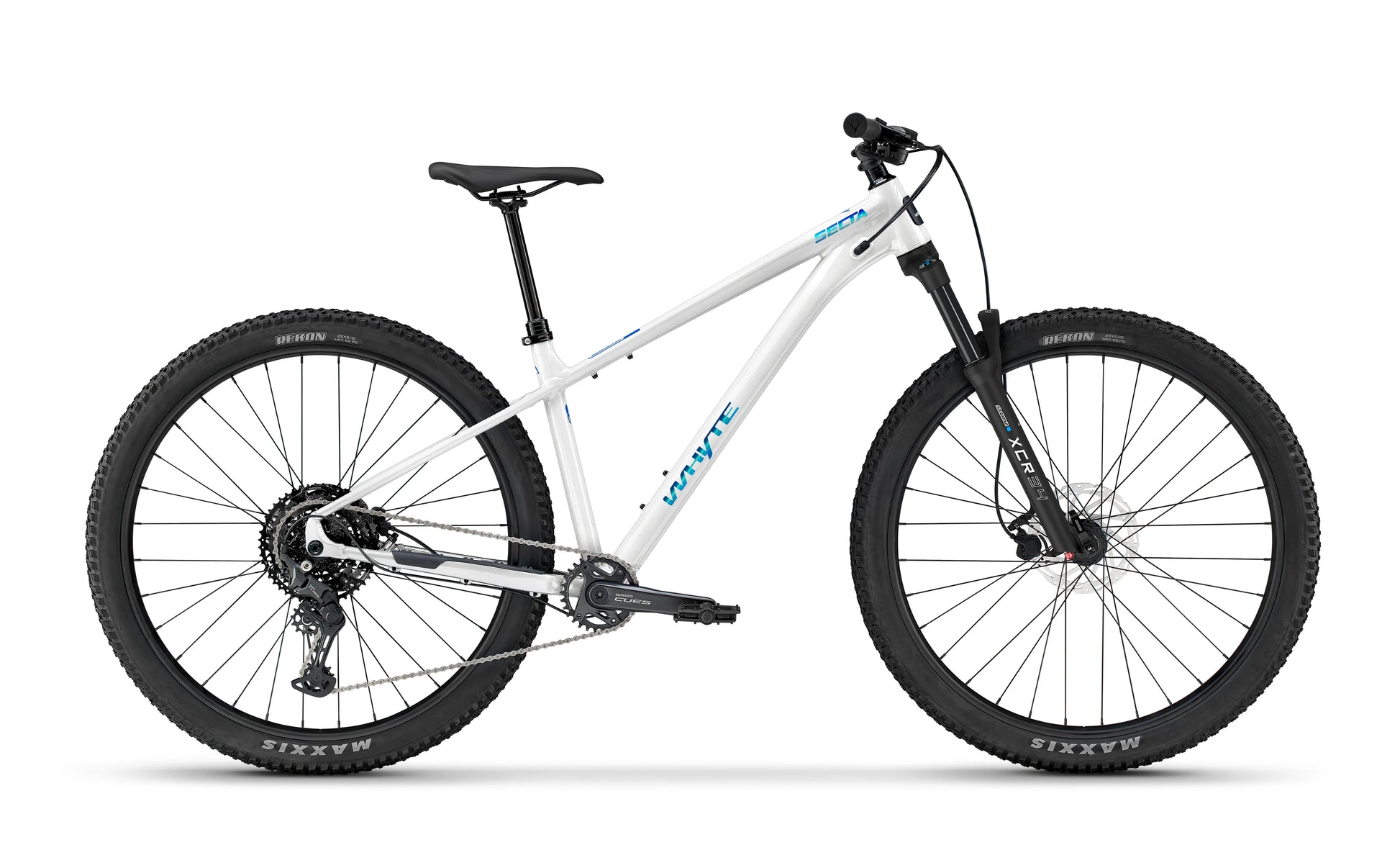

WHYTE SECTA R MOUNTAIN BIKE
WHYTE SECTA R MOUNTAIN BIKE
Couldn't load pickup availability
COLLECTION IN STORE ONLY
Get set to get mountain biking
However you ride, Secta R is ready to help you ride your best – right from the shop floor. With the same frame as our critically praised Secta RS, the Secta R is designed to help unlock your riding in a fun, confidence-inspiring and high-value package. Its fully-featured frame, specially curated components – including a dropper seat post to give you maximum confidence on descents (letting you lower and raise the saddle as your ride at the touch of button) – and enabling handling all combine to deliver you the best mountain bike trail performance and price possible. All so you can have maximum fun on the trail – and more money in your pocket.
Highlights
– Fully featured 6061 T6 precision formed aluminium frame.
– 130mm Suntour XCR 34 suspension fork.
– TransX full-insertion dropper post (with frame size-specific drop).
– Capable, smooth-rolling 29er wheels + Maxxis tyres.
– Shimano Cues 1x9 transmission (30T chainring x 11-46 cassette).
– Tektro two-piston hydraulic disc brakes (180mm rotors front + rear).
Specifications
| COLOUR | Electric white | CASSETTE | Shimano LG300, 11-46T, 9 speed |
|---|---|---|---|
| FRAME | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. | CHAIN | KMC XGlide, 116 links |
| FORK | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle | CRANKSET | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| REAR SHOCK | N/A | BOTTOM BRACKET | Shimano BB-UN101, square taper, 122.5mm |
| HEADSET | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings | SEATPOST | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub | SADDLE | Whyte Custom |
| FRONT HUB | Alloy, 15mm x 110mm Boost spacing, 32 hole | HANDLEBAR | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| SPOKES | 2.0mm, black stainless, brass nipples | STEM | Whyte alloy, 35mm extension, 31.8mm bar bore |
| RIMS | Pinned joint, 30mm internal width, tubeless ready, 32 hole | GRIPS | Whyte Trail lock-on |
| TYRE | Maxxis Rekon 29in x 2.4in front and rear | BRAKES FRONT | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| SHIFT LEVERS | Shimano CUES U4000, 9 speed, Band On clamp | BRAKES REAR | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| FRONT MECH | N/A | BRAKE LEVERS | Tektro M285 |
| REAR MECH | Shimano CUES U4000, 9 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 420 | 445 | 470 | 495 |
| B - STACK (mm) | 649.4 | 644 | 662 | 671 |
| C - HEAD ANGLE (° degrees) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - SEAT ANGLE (° degrees) | 75.5 | 76 | 76.5 | 77 |
| E - BB HEIGHT (mm) | 298 | 298 | 298 | 298 |
| F - WHEELBASE (mm) | 1187.4 | 1215.1 | 1246.4 | 1275.9 |
| G - REAR CENTRE (mm) | 443.4 | 443.4 | 443.4 | 443.4 |
| H - STANDOVER HEIGHT (mm) | TBC | TBC | TBC | TBC |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 105 | 114 | 125 | 135 |
