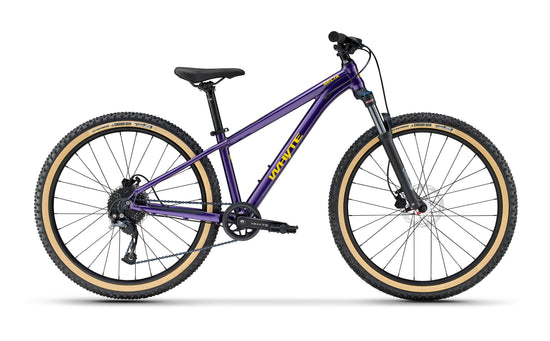

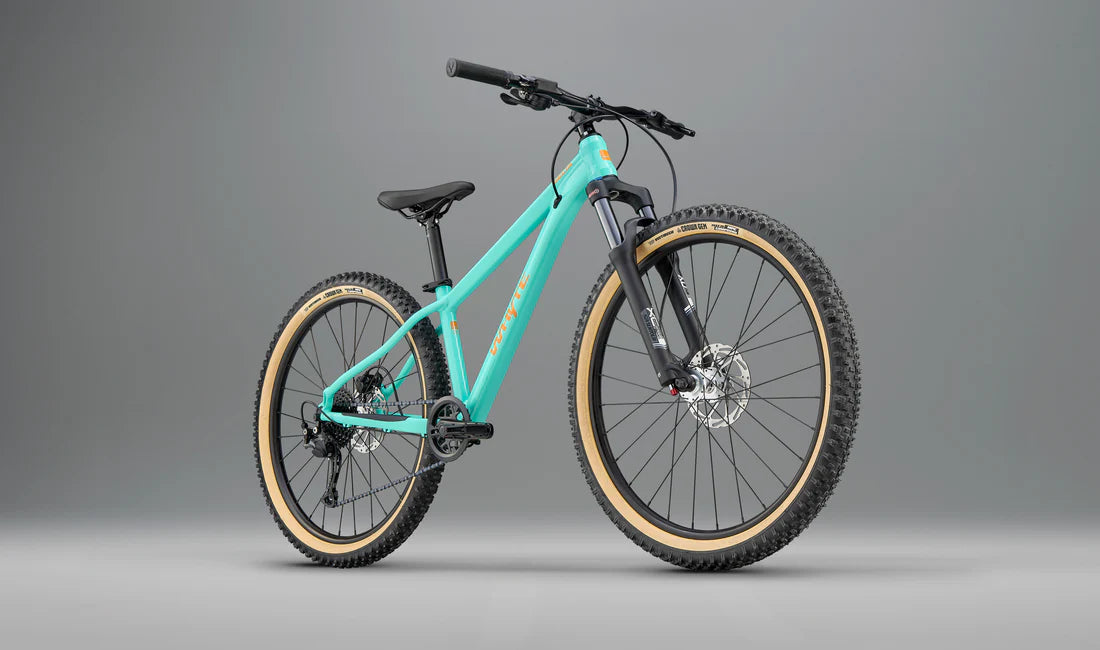

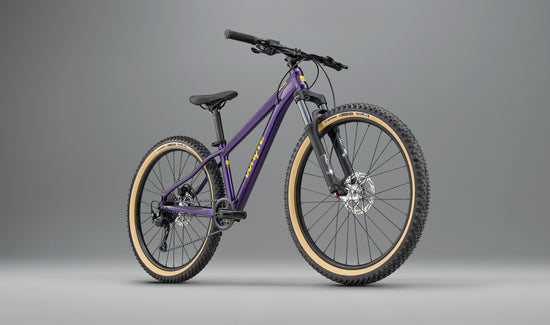

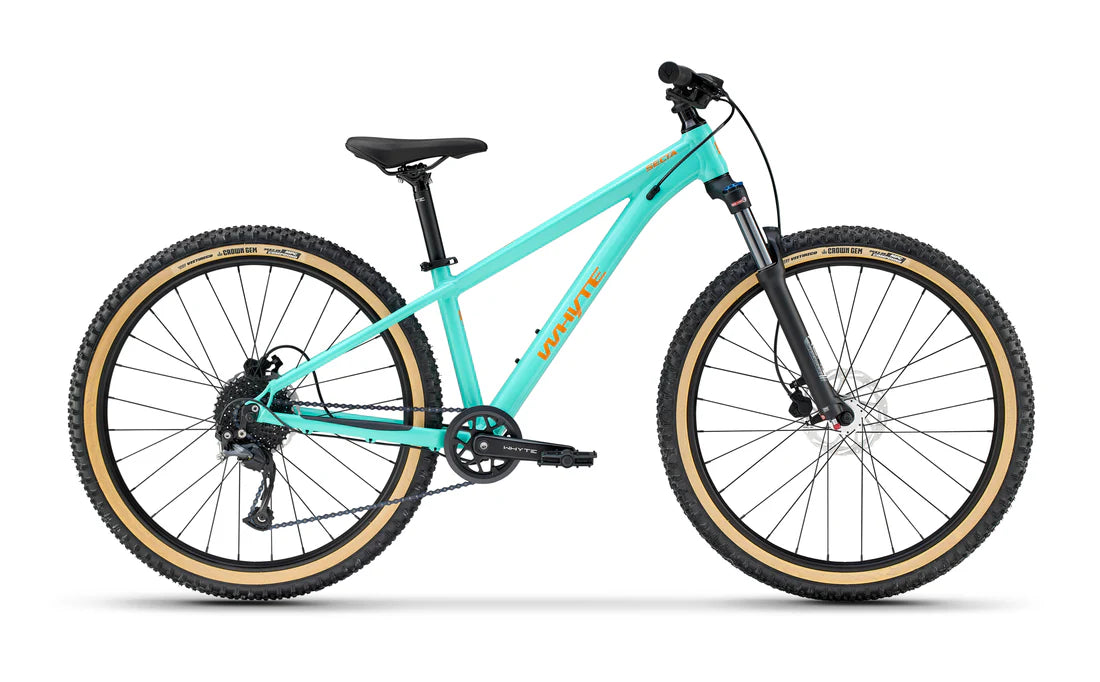

WHYTE SECTA 26 JUNIOR MOUNTAIN BIKE

COLLECTION IN STORE

Fun, fast and capable

Designed to be the perfect trail partner for youth riders. Secta 26 builds on our award-winning hardtail heritage to deliver the best performance for junior riders in a small and perfectly formed package.

Highlights

– Lightweight, dropper post-ready 6061 T6 aluminium frame.

– 100mm Suntour XCM adjustable air-sprung suspension fork.

– Size-specific parts for perfect fit and comfort.

– 26in wheels and all-rounder off-road tyres.

– Shimano 1x9 transmission (30T chainring x 11-36T cassette).

– Tektro hydraulic disc brakes (160mm rotors front + rear).

SPECIFICATION

COLOUR Gloss purple with yellow CASSETTE SunRace CSM90, ED Black 11-36, 9 Speed

FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts CHAIN SunRace, 9 Speed

FORK SR Suntour XCR, 100mm Travel, Hydro Lock-out, Air Spring, Adjustable Rebound, Post Mount CRANKSET Alloy 6061, 30T Narrow Wide Chainring, Single guard, 152mm Crank Length

REAR SHOCK N/A BOTTOM BRACKET Square Interface, Cartridge Bearings, 73mm

HEADSET FEIMIN H807B, Semi Integrated, 1 1/8” Caged Bearings SEATPOST Whyte 6061 Alloy, 15mm Offset, 30.9mm x 300mm, 2 Bolt Clamp

REAR HUB Alloy, Cup & Cone, Double Seal, 28 Hole SADDLE Whyte Jr Mid Custom

FRONT HUB Alloy, Cup & Cone, Double Seal, 28 Hole HANDLEBAR Whyte 6061 Alloy, 25mm Rise, 31.8mm, 660mm Wide

SPOKES 2.0mm, PG, Black Stainless, Brass Nipples STEM Whyte Alloy, 35mm

RIMS Whyte Trail-403, 28 Hole GRIPS Whyte Lock-on V Grip

TYRES VEE TIRE Co, Crown Gem 26” x 2.25” BRAKES (FRONT) Tektro HD-M275, Hydraulic, 160mm Rotor

SHIFT LEVERS Shimano Altus RD-M2000-SGS, 9 Speed BRAKES (REAR) Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing

FRONT MECH N/A BRAKE LEVERS Tektro HD-M275

REAR MECH Shimano Altus SL-M2010, Trigger Shifter, 9 Speed PEDALS Fibre Reinforced Composite Platform

WEIGHT TBC

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

GEOMETRY

FRAME SIZE One size

A – REACH (mm) 380

B – STACK (mm) 560

C – HEAD ANGLE (°degrees) 66.5

D – SEAT ANGLE (°degrees) 76

E – BB HEIGHT (mm) 295

F – WHEELBASE (mm) 1157

G – REAR CENTRE (mm) 410

H – STANDOVER HEIGHT (mm) 706

I – SEAT TUBE LENGTH (mm) 331

J – HEAD TUBE LENGTH (mm) 95
