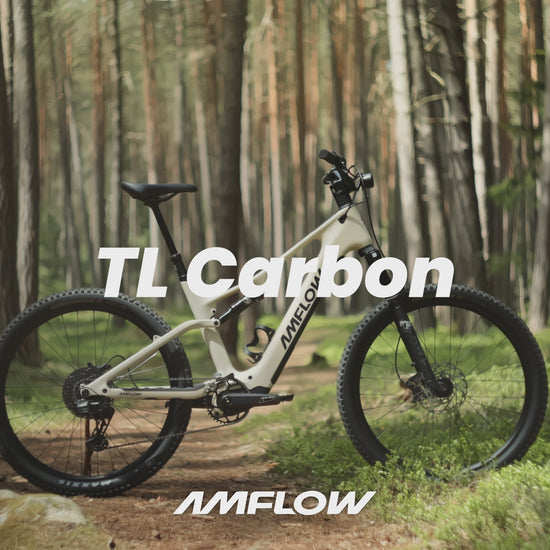

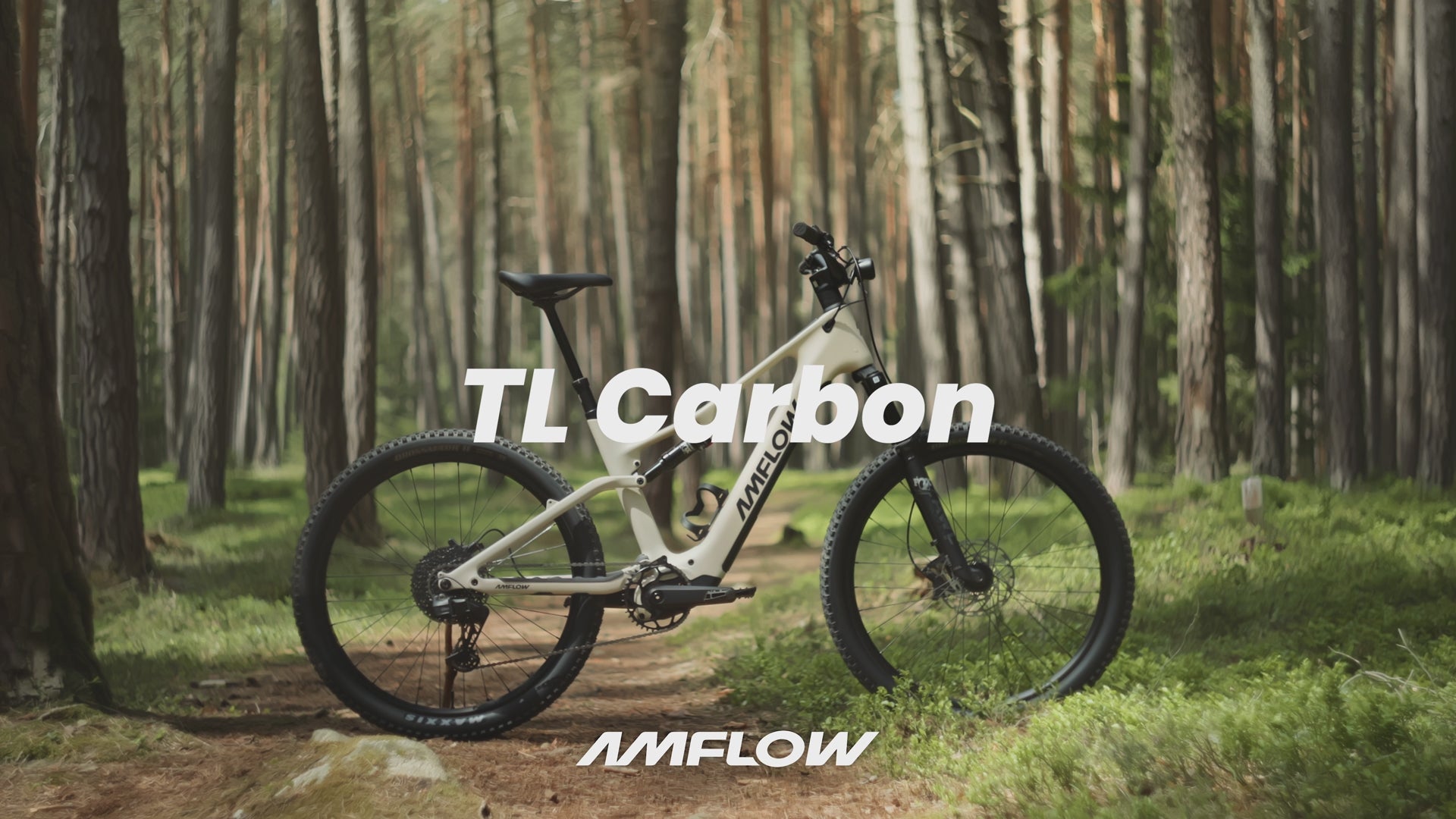

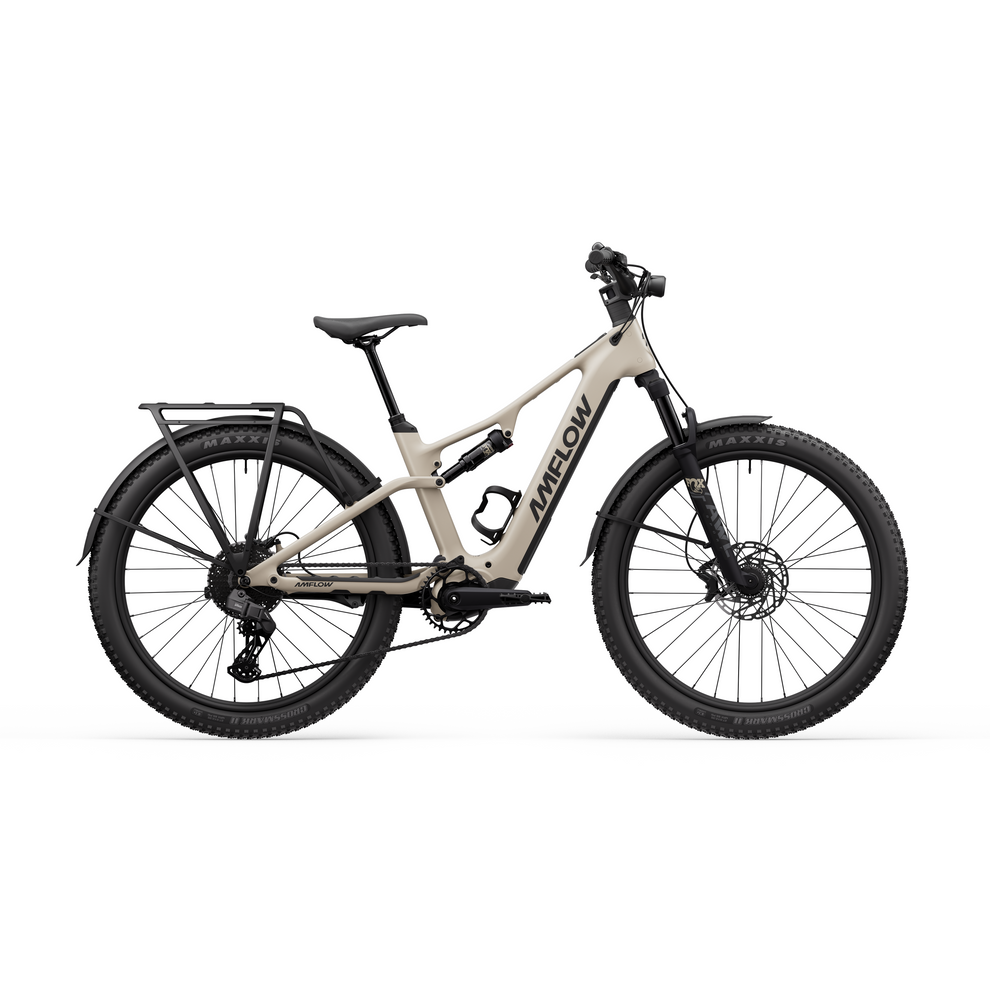

AMFLOW TL CARBON 2027

The Amflow TL Carbon is a full suspension electric touring bike built for riders who want comfort, range, power and real off-road capability in one premium package. Sitting apart from a traditional commuter e-bike or a full enduro eMTB, the TL Carbon is designed for long-distance riding, mixed terrain, daily practicality and weekend adventure, while still carrying the performance-focused DNA that makes Amflow stand out.

Built around a carbon full suspension frame, removable Avinox RS800 battery and the powerful Avinox M2 drive unit, the TL Carbon gives you the support, stability and confidence needed for everything from road miles and forest tracks to gravel routes, bridleways, bikepacking trips and loaded touring.

This is a bike designed to go further, carry more and stay composed when the surface gets rough.

Frame

Amflow TL Carbon Frame

Color: Silica Beige

Features: Full Suspension, Removable Battery, Compatible With 27.5" and 29" Front and Rear Wheels

Compatibility: Front and Rear Mudguards, Rear Rack, Front Rack, Bike Trailers (Requires Trailer Thru-Axle)

Drive System

Drive Unit: Avinox M2 Drive Unit Nominal 110N·m, Peak 125N·m

Display: Avinox DPC100, 2-inch OLED Control Display

Battery: Avinox RS800 Battery (Removable)

Wireless Controllers: Avinox Wireless Controller - 2 (One on each side of the handlebar)

Charger: Avinox 4A Charger, 168W Output

Rear Shock

FOX FLOAT RhythmLSR adjustment, Amflow TL tuned, 190 - 45mm

Fork

FOX AWL Sport 120mm, RAIL 2.0 damper, LSR adjustment, 15-110mm Kabolt, 44mm offset

Drivetrain

Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur

Cassette: CS-M5243, 10-Speed, 11-43T

Chainring: Avinox Direct Mount Chainring (38T)

Chain: Avinox eGlide T Chain (10S/11S, 118 Links)

Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakes

Brake System: Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow

Rotors: Tektro TR180-61E, 180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheels

Front Wheel: Amflow HTA-25 Front Wheel (27.5")

Tyre: Maxxis 27.5 - 2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5", 25mm Inner Width, 32H

Hub: Alloy, 15 - 110mm Thru-Axle, 32H, 6-bolt

Rear Wheel: Amflow HTA-25 Rear Wheel (27.5)

Tyre: Maxxis 27.5 - 2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5 , 25mm Inner Width, 32H

Hub: Alloy, 12 - 148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Tyres

Maxxis 27.5 - 2.35 Crossmark II Wire Bead / Clincher / EXO / 60TPI

Handlebar

Amflow Touring Handlebar

S/M Frame: 720mm Width, 35mm Diameter, 93mm Rise

L/XL Frame: 740mm Width, 35mm Diameter, 93mm Rise

Grips

Amflow Enduro Grip 2

Stem

Amflow Touring Bike Split Stem - " Clamping Diameter: 35mm, Length: 35mm, Angle: 0°

Saddle

Amflow Touring Saddle

Dropper Post

Amflow TA Dropper Post31.6mm (Adjustable Travel: 0/-10/-20mm)

S/M Frame: 150mm Travel

L/XL Frame: 170mm Travel

Accessories

Front Light: Avinox Front Light

Rear Rack: Amflow Touring Rear Rack, Compatible With MIK HD Standard

Pedals: Amflow Elite MTB Pedals

Bottle Cage: Amflow Bottle Cage

Mudguards: Front Mudguard, Rear Mudguard

Kickstand: Amflow Touring Kickstand (348mm)

Stem: Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)

Rear Light: Sate-lite M8 Rear Light With Integrated Reflector

Spacer: Dropper Post Travel Reducing Spacer

Battery Keys: Two Keys for Removable Battery

Tool: Torque Wrench
