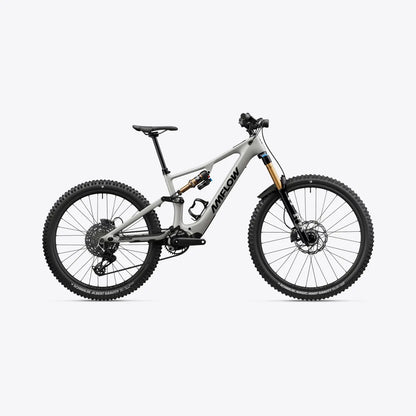

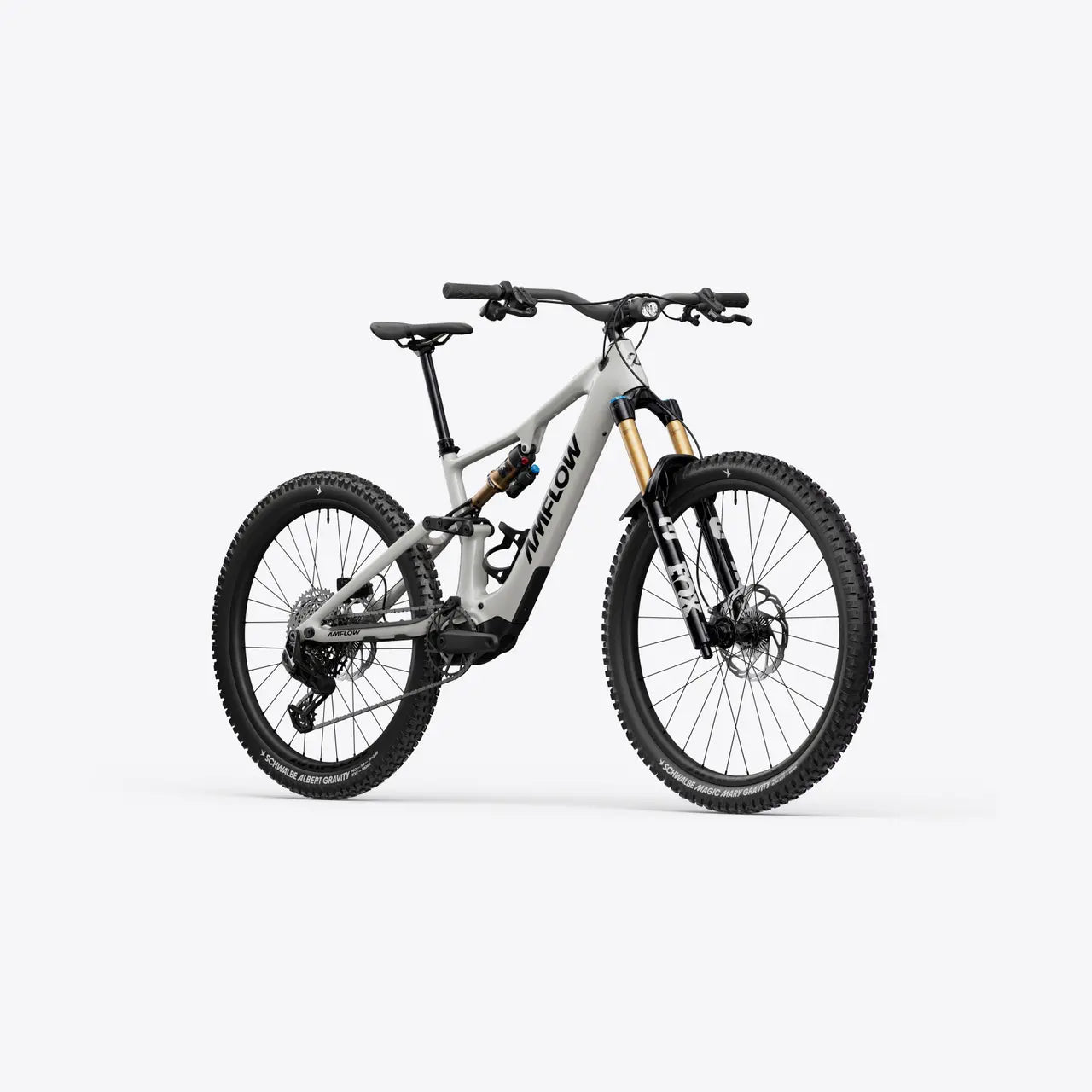

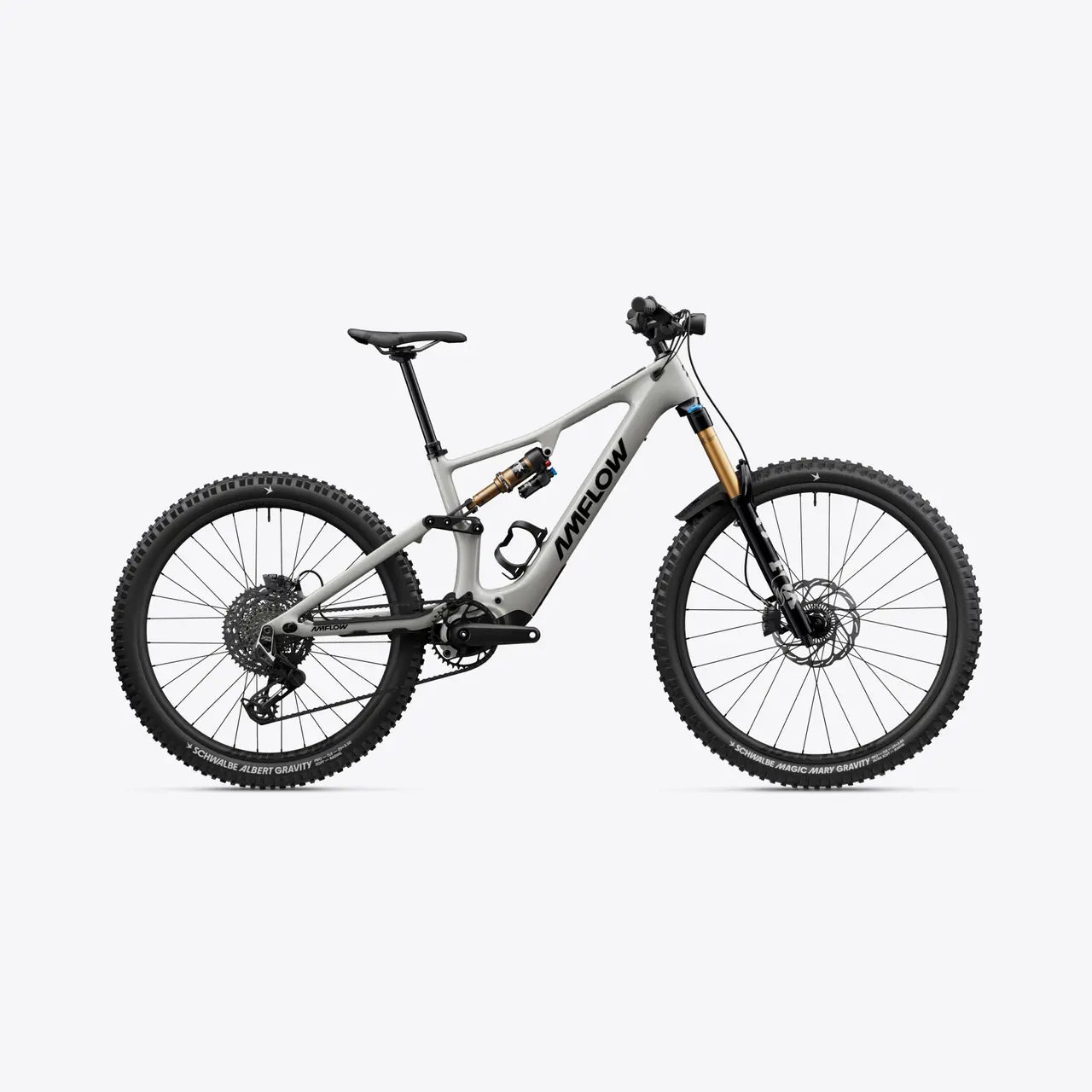

AMFLOW PX CARBON PRO 2027

DEMO PX AVAILABLE IN LARGE

All bikes are collection in store only

Amflow PX Carbon Pro comes with privileges such as extended warranty for key carbon fiber components and the drive system, free battery replacement, 50% off crash replacement, and professional maintenance, significantly reducing long-term ownership costs.

Full carbon frame with advanced geometry adjustability

FOX 36 Factory fork with GRIP X2 damper

FOX Float X Factory rear shock

SRAM X0 Eagle Transmission drivetrain

Carbon mullet wheelset for reduced weight and increased stiffness

Equipped with FOX Factory suspension front and rear, the PX Carbon Pro offers unrivalled adjustability and trail feedback. The GRIP X2 damper allows fine-tuning for aggressive riding, delivering confidence on both red and black trails.

From the SRAM X0 Transmission drivetrain to the lightweight carbon wheelset, every component is chosen for performance. Faster engagement hubs, improved stiffness, and refined shifting combine to create a bike that excels under pressure.

40 adjustable geometry configurations *

Compatible with 27.5″ and 29″ rear wheels

* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage

DJI Avinox M2S Drive System -

At the core of the PX is the immutable DJI Avinox M2S motor, now pushing an incredible 150nm of torque with a peak power output of 1500W, all at a svelte weight of 2.59kg. This performance is simply unmatched in electric mountain biking.

Powering the M2S is an integrated high-capacity 700Wh battery. This new unit comes in at a weight of 3.18kg. Included with the bike is a fast charger.

Sizing:

The Amflow PX Carbon Pro is available in four frame sizes. The height ranges below are a useful starting point, but where sizes overlap, reach is the most important measurement for fit — a longer reach suits riders who prefer a more stretched, aggressive position, while a shorter reach works better for those who prefer to sit more upright.

M — 157–173cm (5'2"–5'8") — Reach: 452mm, Stack: 626mm

L — 173–183cm (5'8"–6'0") — Reach: 475mm, Stack: 637mm

XL — 180–191cm (5'11"–6'3") — Reach: 500mm, Stack: 649mm

XXL — 191–198cm (6'3"–6'6") — Reach: 527mm, Stack: 662mm

Frame: Amflow PX Carbon Pro Frame, Moonstone Gray, 40 adjustable geometry configurations, compatible with 27.5″ and 29″ rear wheels

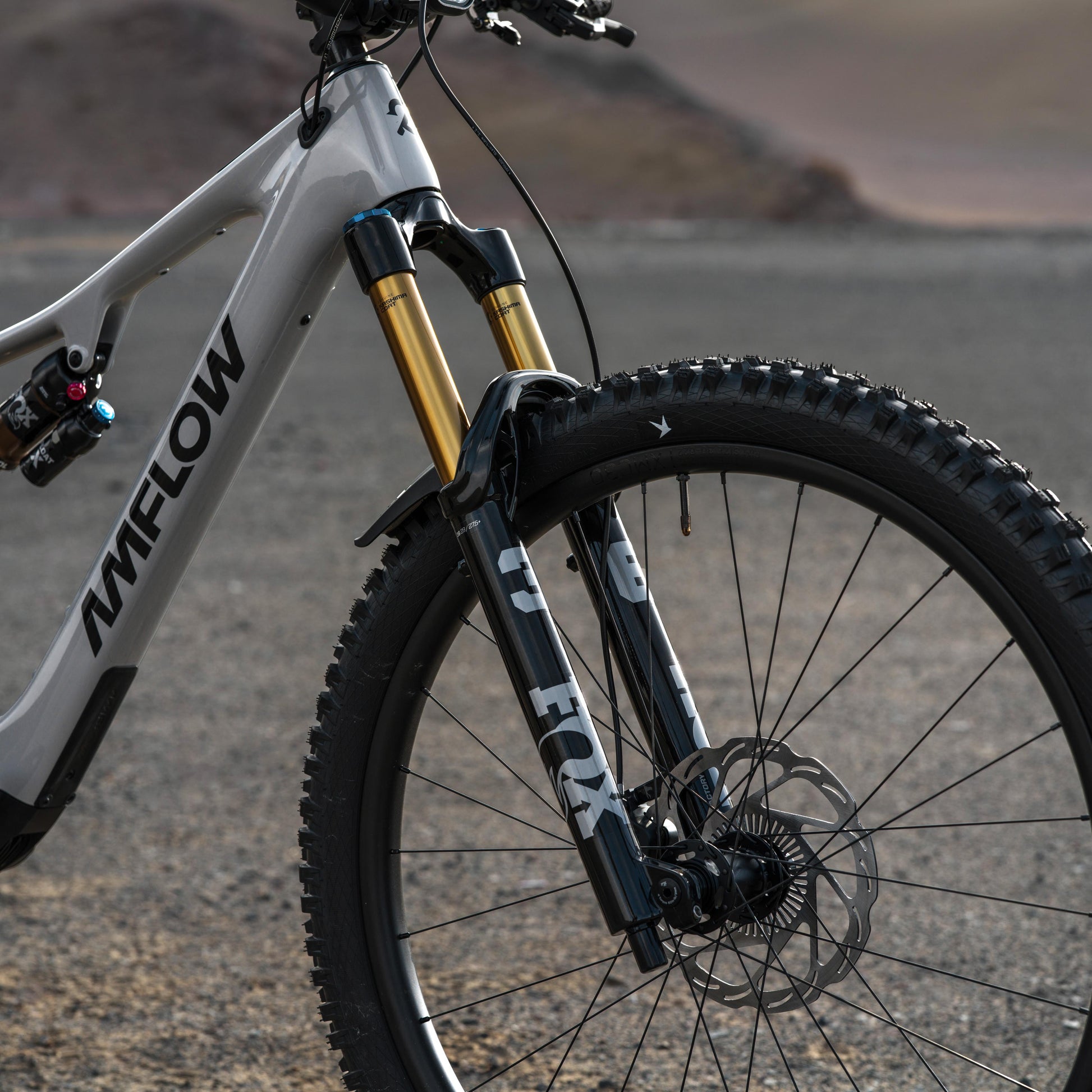

Fork: FOX 36 Factory (MY 2027), 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset

Rear shock: FOX Float X Factory (MY 2027), 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock

Display: Avinox Screen, 2-inch OLED Control Display

Battery: Avinox Integrated Battery, 700Wh

Controllers: Avinox Wireless Controllers, right and left sides

Charger: Avinox Fast Charger, 12A/508W

Rear derailleur: SRAM X0 Eagle Transmission Derailleur

Chainring: SRAM Eagle Transmission DM Chainring, 38T for Avinox

Shift levers: SRAM AXS Pod Rocker Controller

Cassette: SRAM XS-1295 Eagle Transmission Cassette, 10-52T

Chain: SRAM X0 Eagle Transmission Chain

Power supply: Avinox M2 Series Electronic Rear Derailleur Power Cable

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Front brake: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Rear brake: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Brake rotors: Magura Sensor Rotor (203mm, 2.5mm)

Handlebar: Amflow Enduro Carbon Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep

Grips: Amflow Enduro Grip 2 Lock-on Grips

Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter

Wheelset: Amflow XMC-30 Mullet Version

Front rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready

Rear rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready

Spokes: SAPIM E-Light

Front hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt

Rear hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD

Front tyre: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial

Rear tyre: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial

Saddle: Amflow Mountain Saddle Titanium

Dropper post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L frame: 190mm, XL frame: 210mm, XXL frame: 230mm

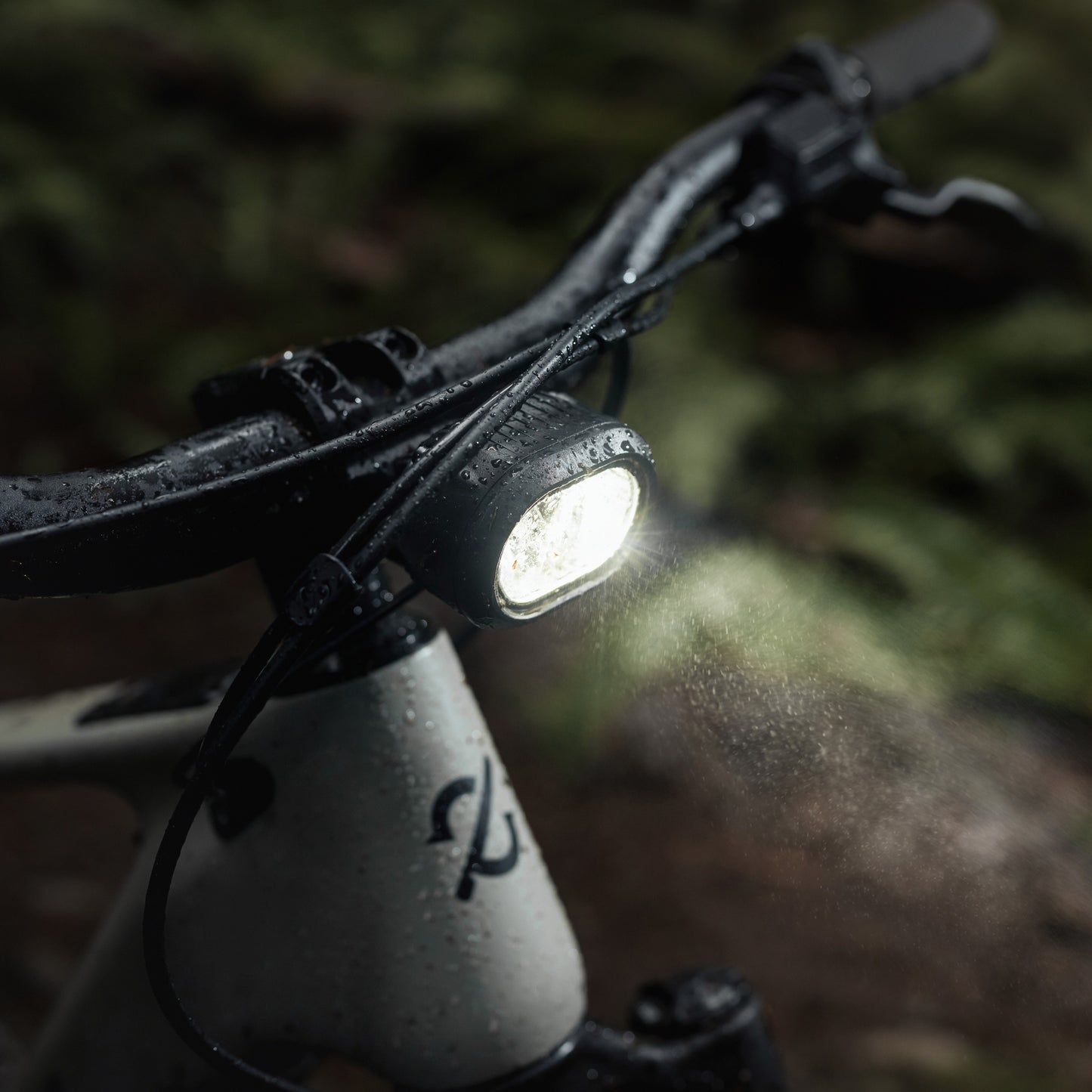

Front light: Avinox Front Light

Rear light: Rear Light

Bottle cage: Amflow Bottle Cage

Geometry systems: Three Geometry Adjustment Systems

Dropper spacers: 5/10mm Dropper Post Travel Reducing Spacer

Torque wrench: Included

Frame protection: Clear Frame Protection Film

Shock pump: Included

Guide: Quick Start Guide

Valve conversion set: Schwalbe Clik Valve Conversion Set

Mud guard: FOX 36 Mud Guard (Short)
