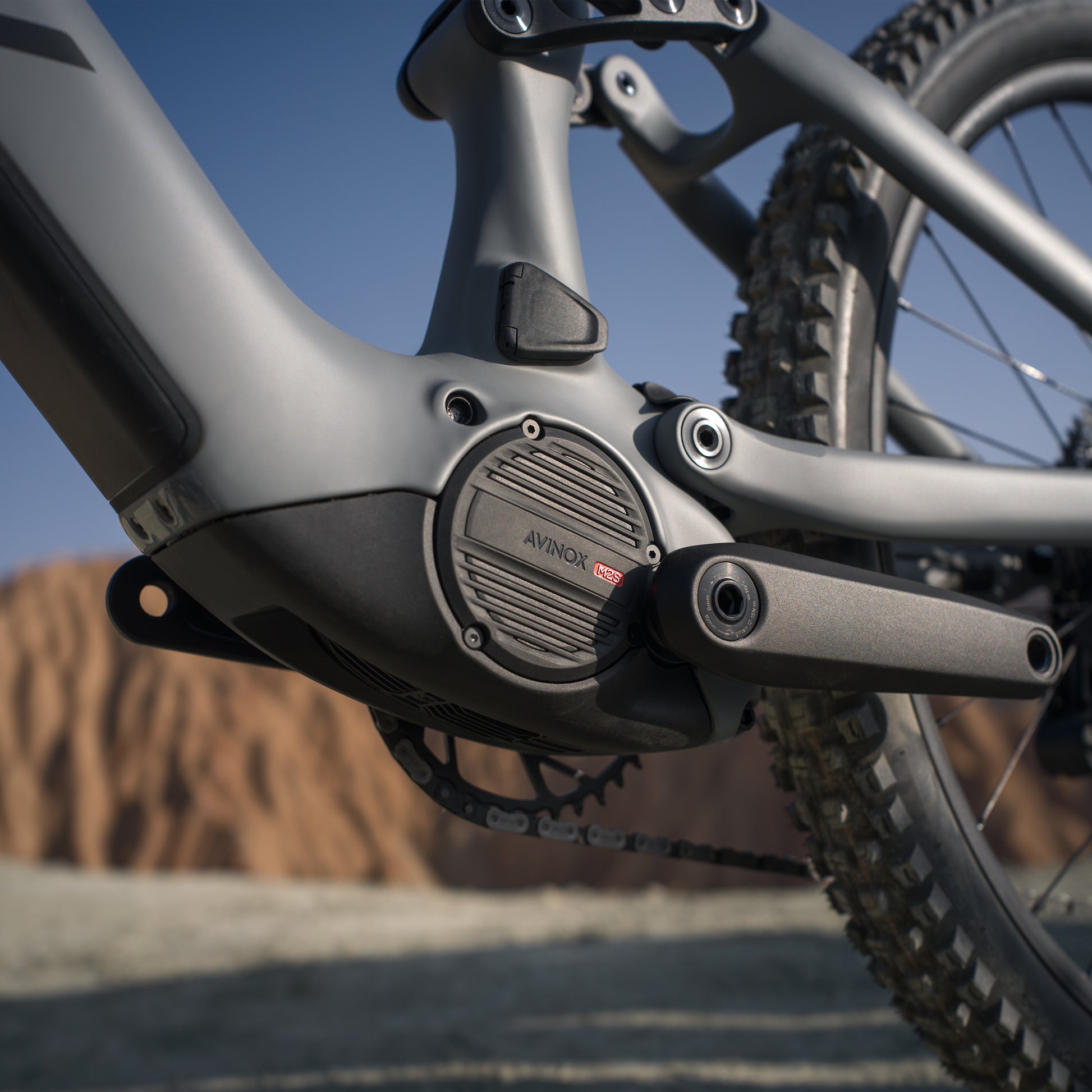

DJI Avinox M2S Drive System -
At the core of the PX is the immutable DJI Avinox M2S motor, now pushing an incredible 150nm of torque with a peak power output of 1500w, all at a svelt weight of 2.59kg. This performance is simply unmatched in electric mountain biking.
Powering the M2S is an integrated high-capacity 700wh battery. This new unit comes in at a weight of 3.18kg. Included with the bike is a fast-charger.
The M2S Drive Unit utilises multiple high-precision sensors and intelligent algorithms to adjust output in real-time, delivering a natural, linear pedalling feel. The Avinox Drive System also features a specialised Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150Nm of torque and 1500W high-power assistance.
Frame -
The Amflow PX's frame is ultra-lightweight and has been designed with an all-new cutting-edge progressive geometry. The result is an unbelievably versatile platform that can handle all terrains, trails, or bike park runs you could aim at. To top it off, the frame comes in at an outstanding 2.4kg, meaning the bike feels agile and playful, the perfect partner for that sublime motor. The frame can be dialled in to your needs with a potential of 40 configurations thanks to 5 headset angle settings, 2 bottom bracket height settings and 4 chainstay length settings.
The Amflow PX Carbon is available in four frame sizes. The height ranges below are a useful starting point, but where sizes overlap, reach is the most important measurement for fit — a longer reach suits riders who prefer a more stretched, aggressive position, while a shorter reach works better for those who prefer to sit more upright.

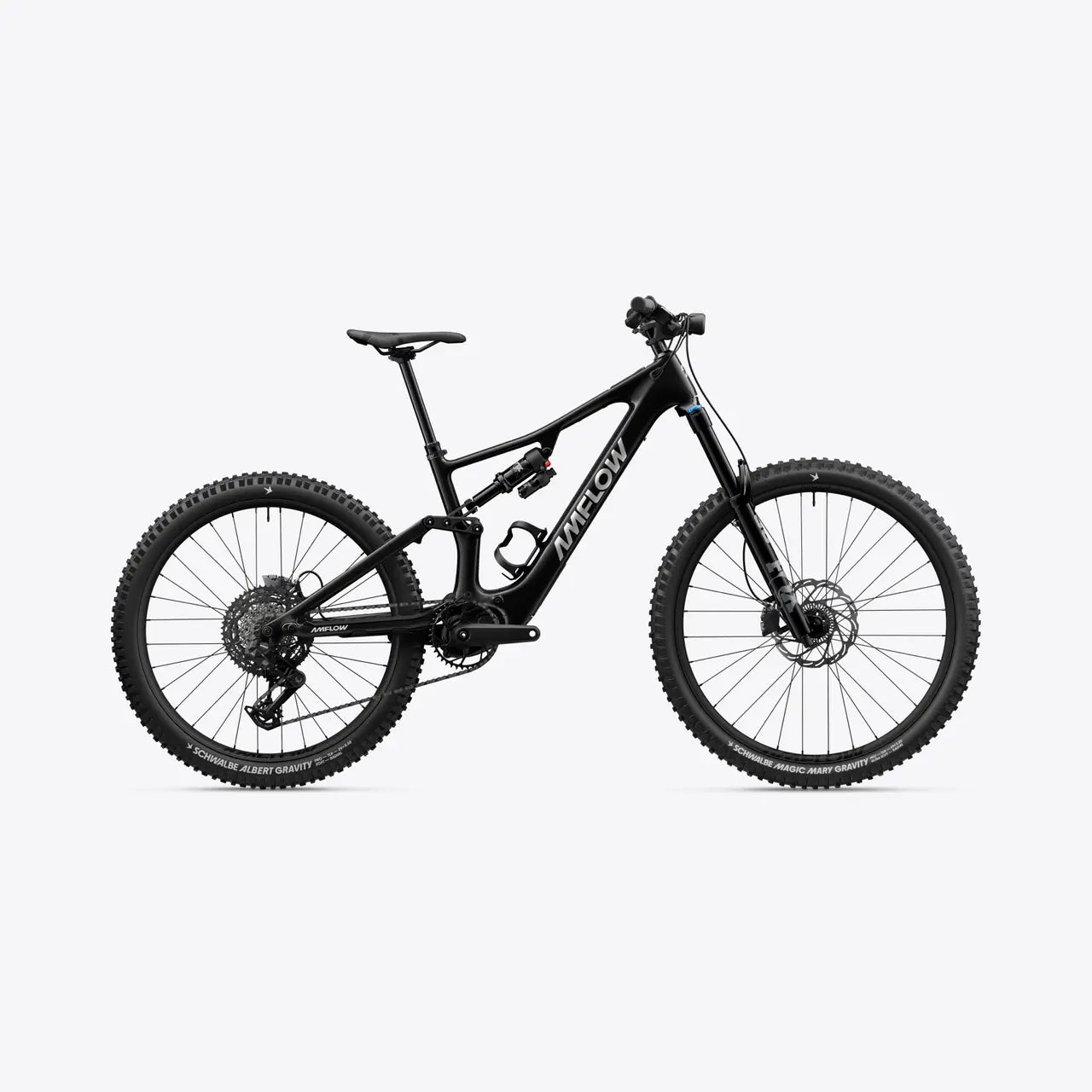

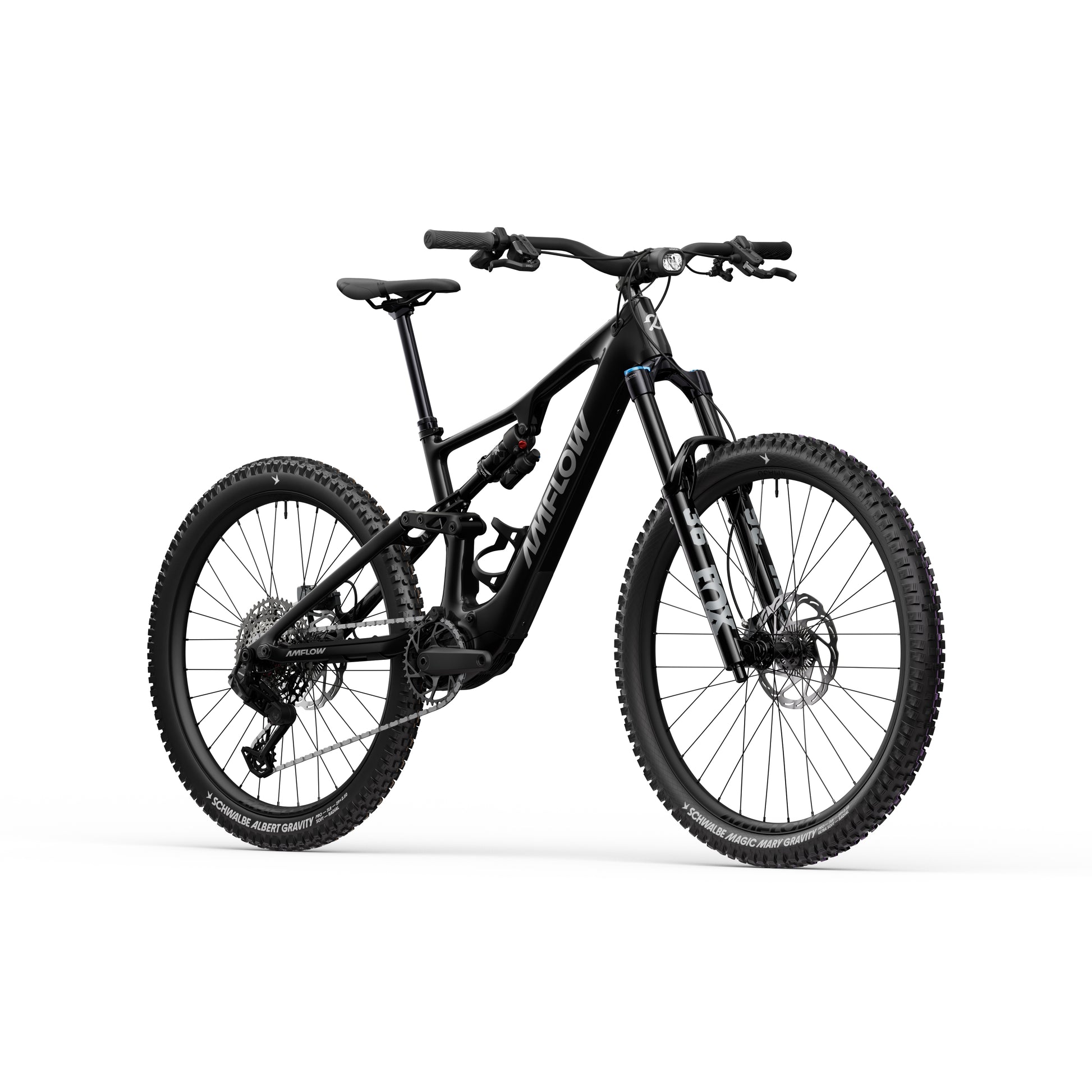

Amflow PX Carbon Frame
Phantom Black
40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
FOX Float X Performance (MY 2027)
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
FOX 36 Performance (MY 2027)
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

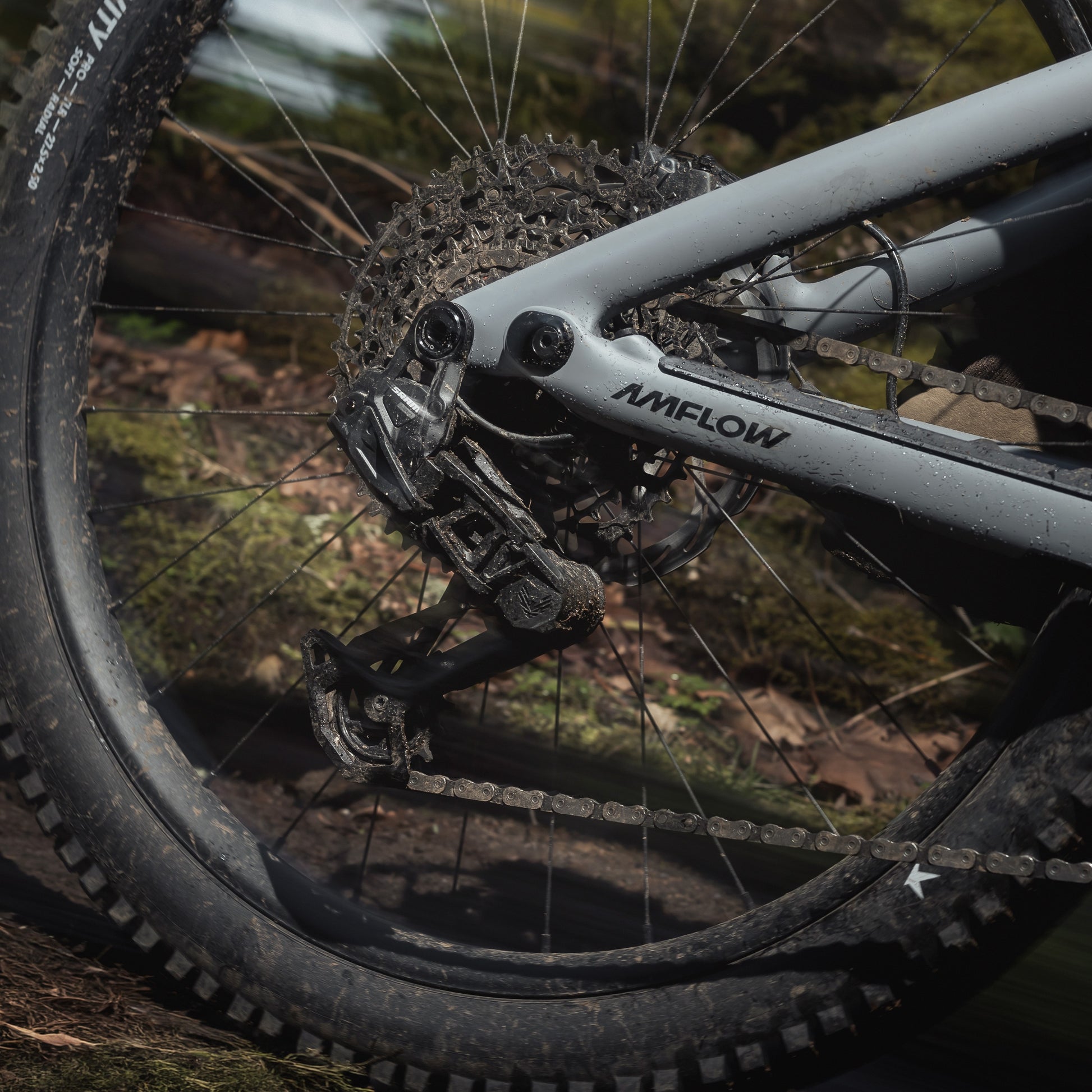

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree
Amflow Enduro Grip 2 Lock-on Grips
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Amflow Mountain Saddle
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
M/L Frame: 190mm
XL Frame: 210mm
XXL Frame: 230mm
