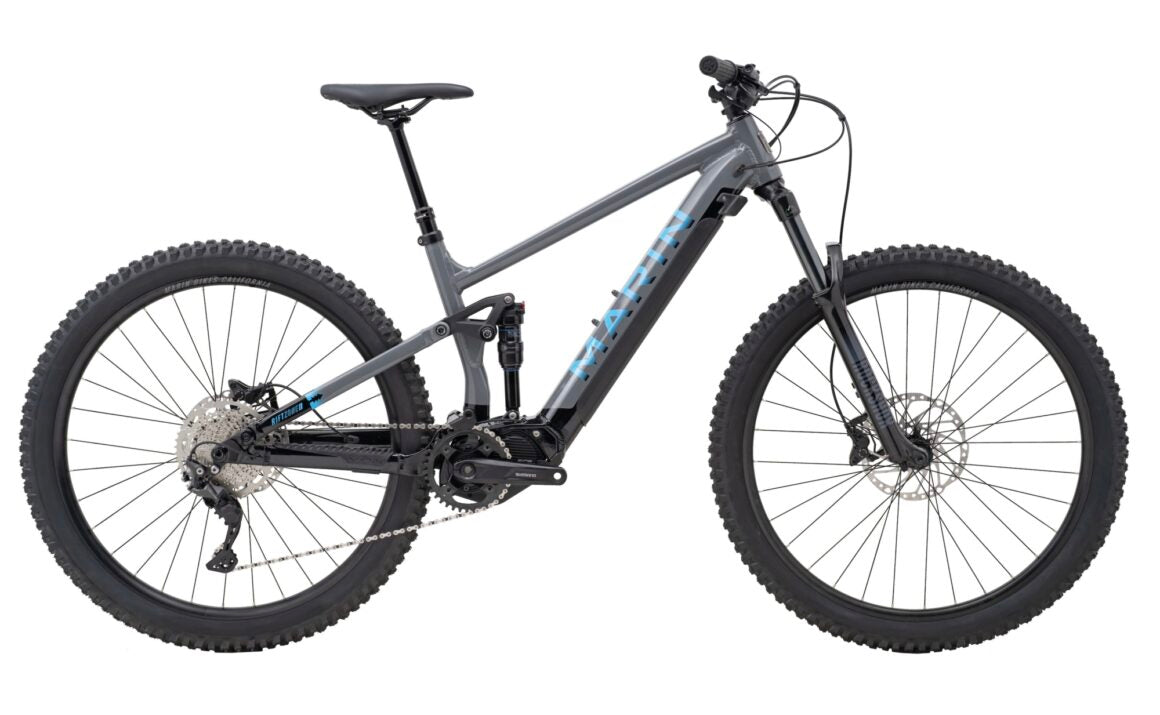

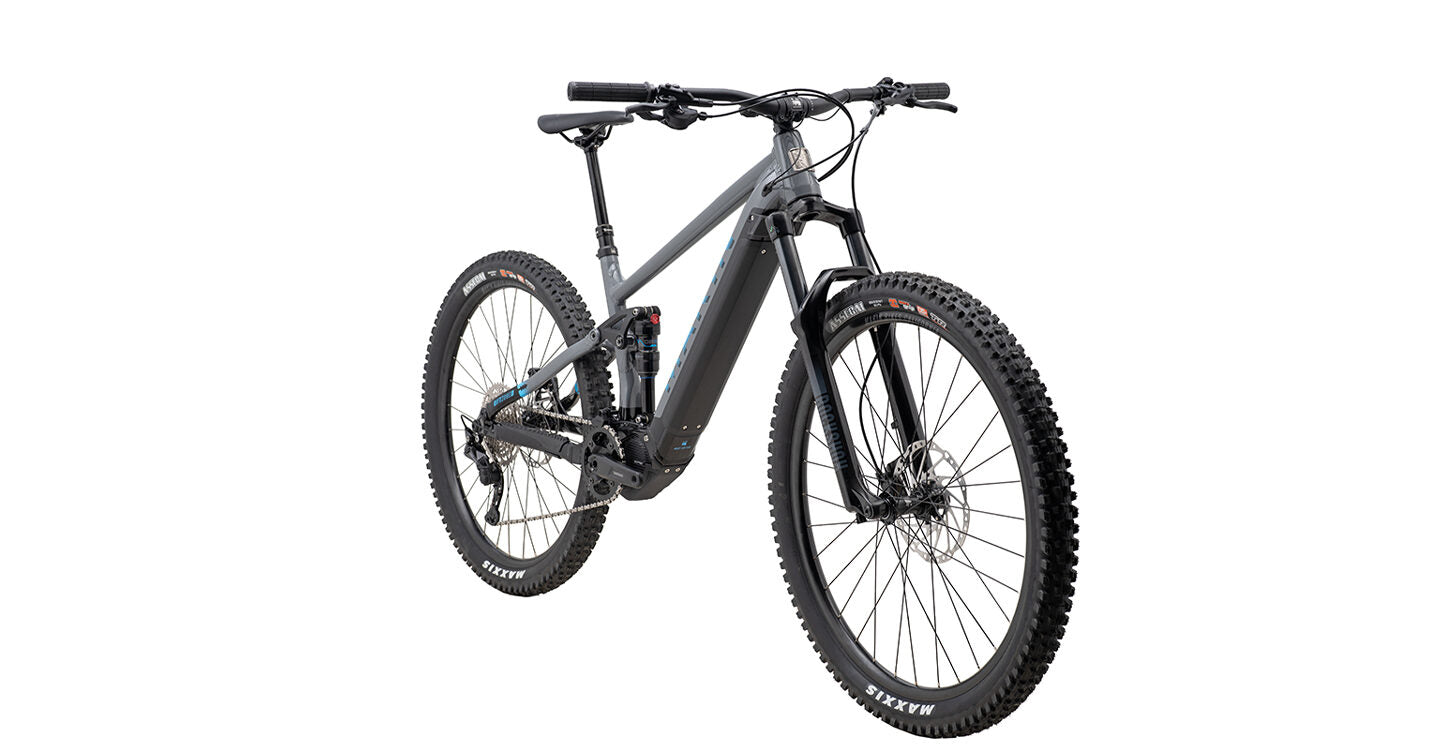

EX-HIRE MARIN RIFT ZONE E ELECTRIC FULL SUSPENSION BIKE

COLLECTION IN STORE ONLY

EX-HIRE BIKE FROM 2025 SEASON

FULLY SERVICED PRIOR TO COLLECTION

3 MONTHS WARRANTY

CONDITION PHOTOS AVAILABLE UPON REQUEST

MOUNTAIN BIKING WITH A BOOST

THE JACK-OF-ALL-TRADES MTB, ELECTRIFIED

MAXIMIZING FUN

One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard.

SPECIFICATION

FRAME

All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor



FORK

RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset



SHOCK

X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x55 25xM8 Lower Mount & Upper Mount



RIMS

Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible



HUB REAR

Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body



HUB FRONT

Shimano MT-410B, 110x15mm, Centerlock Disc, 32H



SPOKES

14g Black Stainless Steel



TIRES

Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing



DERAILLEUR REAR

Shimano Deore, Direct Attachment, 10-Speed SGS



SHIFT LEVER

Shimano Deore, 10-Speed



CRANKSET

Aluminum, 160mm Length, 38t Chainring



MOTOR

Shimano Steps EP6 Drive Unit, 250W, 85Nm



CHAIN

KMC X-10E, Silver



CASSETTE

Shimano Deore 10-speed 11-46T



BRAKES FRONT

TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor



BRAKES REAR

TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor



BRAKE LEVERS

TRP Slate Evo



HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back



STEM

Marin 3D Forged Alloy, 35mm



GRIPS

Marin Grizzly Lock On



HEADSET

FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”



SEATPOST

TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm



SADDLE

Marin eMTB Saddle



PEDALS

Marin MTB Plastic



BATTERY

Shimano BT-EN805L, Internal 504Wh



DISPLAY

Shimano SC-E600



SWITCH

Shimano SW-EN600L Left Hand Switch for Assist Mode Change



EXTRAS

Shimano Battery Charger EC-E6002



Specifications, pricing, and availability are subject to change without notice.
